Over 2 decades of rotationally molded aerospace solutions, Granger Plastics continues to provide high quality custom rotomolded solutions for a number of aerospace & defense OEMS and manufacturers. Branching out and developing its own line of standard ULD containers, such as the LD 2, LD 3 and LD 8 Air Cargo Containers, Granger Plastics formed its own aerospace division, Granger Aerospace Products. All of Granger's ULD Containers are offered with both standard bases and forkliftable bases.

Granger Aerospace's LD 2 and LD 8 ULD Containers are built in accordance to AS 1677 standards. The LD 3 containers by Granger Aerospace are built under Granger's highly lauded TSO C90d Authorization from the Federal Aviation Administration.

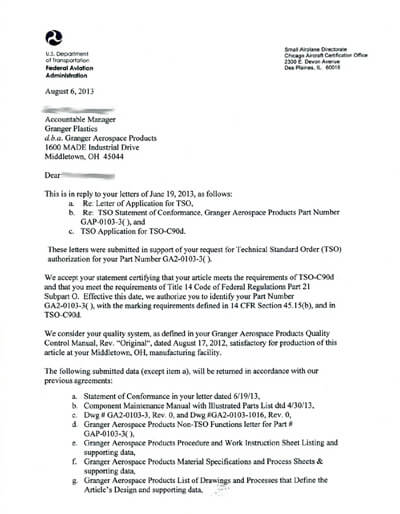

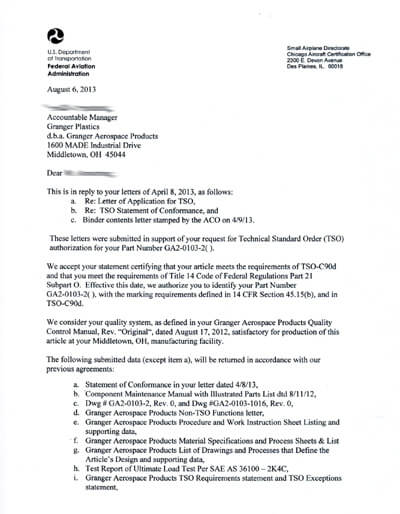

TSO C90d Authorization for Granger Plastics
Granger Plastics TSO C90d
TSO C90d Authorization for Granger Plastics
Granger Plastics TSO C90d

To learn more about Granger Aerospace's line of proprietary ULD Containers, please visit one of the links below:

LD 2 DPE Air Cargo Container

Click on any of the thumbnail images to the right to display the larger image in the LD 2 Air Cargo Container Image Gallery.
LD 2 DPE Air Cargo Container
Granger Aerospace LD 2 DPE Air Cargo Container
  1. LD 2, Granger LD 2, Granger Aerospace LD 2, LD 2 DPE, LD 2 Forkliftable

  2. LD 2 DPE, LD 2, DPE Container, Granger Aerospace ld 2, Granger Plastics LD 2

  3. Granger Aerospace LD 2, LD 2, Granger LD 2 DPE

  4. LD 2 DPE Base, LD 2 DPE Air Cargo Container, LD 2, DPE Container, DPE Air Cargo, Granger Aerospace LD 2 DPE

  5. LD 2 AKN Handle, LD 2 Air Cargo Container Handle, LD 2 Air Cargo Container, Granger Aerospace LD 2



LD 2 DPE Technical Specifications

Technical Specifications
TSO   N/A
IATA   LD-2/DPE
Spec.   AS 1677
Granger Aerospace P/N   GA2-0102-2
Base size 1534 mm x 1562 mm 60.4 in x 61.5 in
Height 1625 mm 64 in
Roof length 1562 mm 61.5 in
Max. gross weight 1224 kg 2700 lb
Internal volume 3.5 cu m 123 cu ft
External volume 3.65 cu m 129 cu ft
Door opening 1010 mm x 1480 mm 39.75 in. x 58.25 in
Tare weight from 72.1 kg 159 lb


LD 2 DPE Dimensional Drawings

Click below to download LD 2 DPE Dimensional PDF
LD 2 Dimensions, LD 2 Air Cargo Container Dimensions, DPE dimensions


LD 2 DPE Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-2 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.

  • LD 2 Air Cargo Container Links


    LD 2 DPE/DPN Information

    Click below to download LD 2 DPE Technical PDF
    LD 2 Specifications, Dimensions, LD 2 Air Cargo Container Dimensions, DPE Dimensions, DPN dimensions



    LD 2 DPN Air Cargo Container

    Click on any of the thumbnail images to the right to display the larger image in the LD 2 Air Cargo Container Image Gallery.
    LD 2 DPN Air Cargo Container
    Granger Aerospace LD 2 DPN Air Cargo Container
    1. LD 2, Granger LD 2, Granger Aerospace LD 2, LD 2 DPN, LD 2 Forkliftable

    2. LD 2 DPN, LD 2, DPN Container, Granger Aerospace ld 2, Granger Plastics LD 2

    3. Granger Aerospace LD 2, LD 2, Granger LD 2 AKN

    4. LD 2 DPN Base, LD 2 Air Cargo Container, LD 2, DPN Container, DPN Air Cargo, Granger Aerospace LD 2 Base

    5. LD 2 DPN Handle, LD 2 Air Cargo Container Handle, LD 2 Air Cargo Container, Granger Aerospace LD 2

    LD 2 DPN Technical Specifications

    Technical Specifications
    IATA   C90d
    SAE AS 36100 class   LD-2/DPN
    Granger Aerospace P/N   NAS 3610 (2K2C)
    Base size 1534 x 2438 mm 79.0 in x 60.4 in
    Height 1625 mm 64.0 in
    Roof length 2438 mm 79.0 in
    Max. gross weight 2449 kg 3500 lb
    Internal volume 3.5 cu m 125 cu ft
    External volume 4.7 cu m 166 cu ft
    Door opening 2298 x 1532 mm 53.13 in x 57.75 in
    Tare weight from 118.8 kg 262 lbs.

    LD 2 DPN Dimensional Drawings

    Click below to download LD 2 DPN Dimensional PDF
    LD 2 Dimensions, LD 2 Air Cargo Container Dimensions, DPN dimensions

    LD 2 DPN Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-2 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.
  • LD 2 Air Cargo Container Links


    LD 2 DPE/DPN Air Cargo Container Information

    Click below to download LD 2 DPN Technical PDF
    LD 2 Specifications, Dimensions, LD 2 Air Cargo Container Dimensions, DPE Dimensions, DPN dimensions

    LD 3 AKE Air Cargo Containers

    Click any of the thumbnail images to the right to display the larger image in the LD 3 Air Cargo Container Image Gallery.
    LD 3 AKE Air Cargo Container

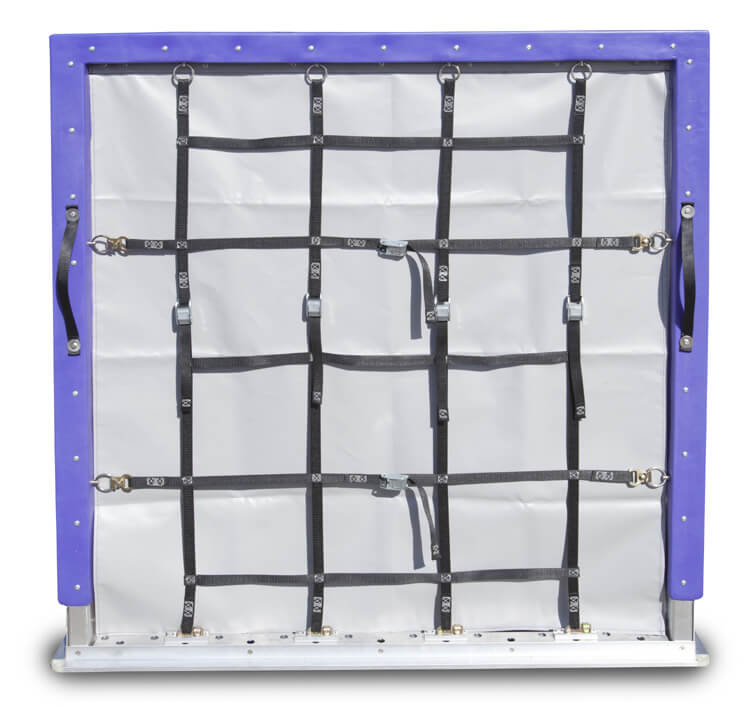

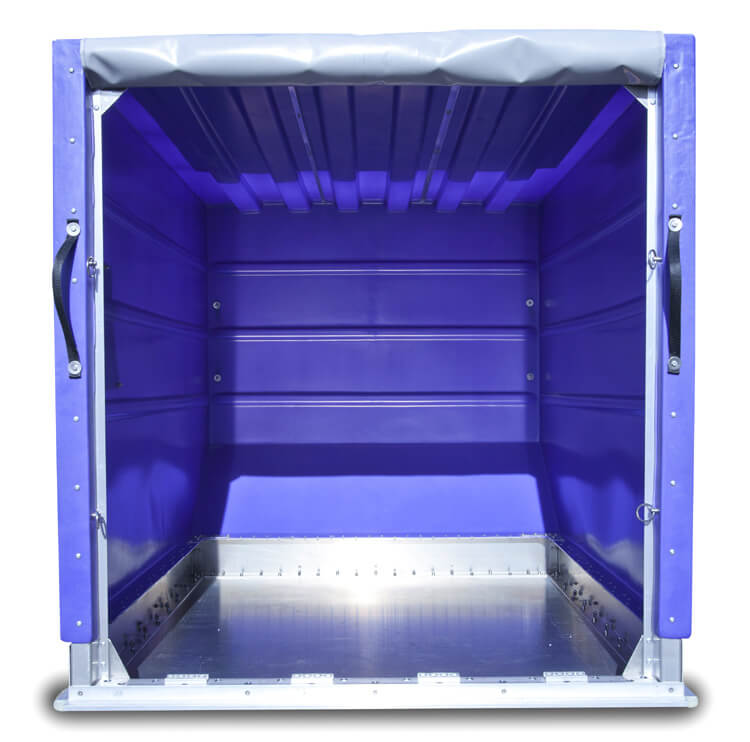

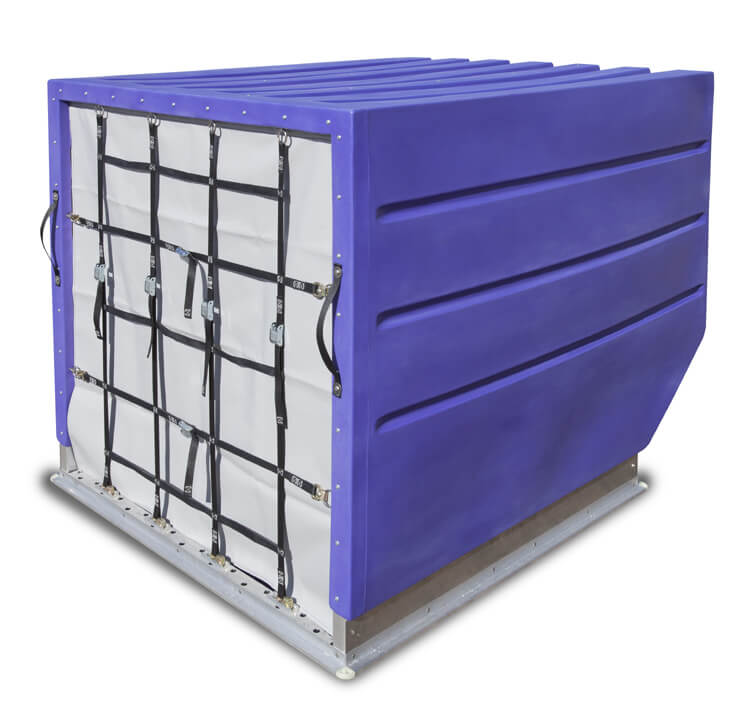

    Granger Aerospace LD 3 AKE Air Cargo Container
    1. LD 3, Granger LD 3, Granger Aerospace LD 3, LD 3 AKE

    2. LD 3 AKE, LD 3, AKE Container, Granger Aerospace ld 3, Granger Plastics LD 3

    3. Granger Aerospace LD 3, LD 3, Granger LD 3 AKE

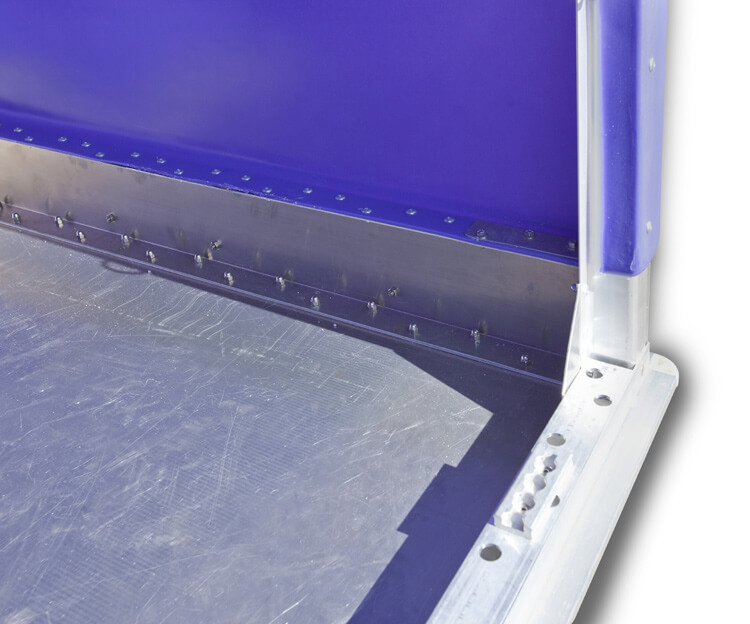

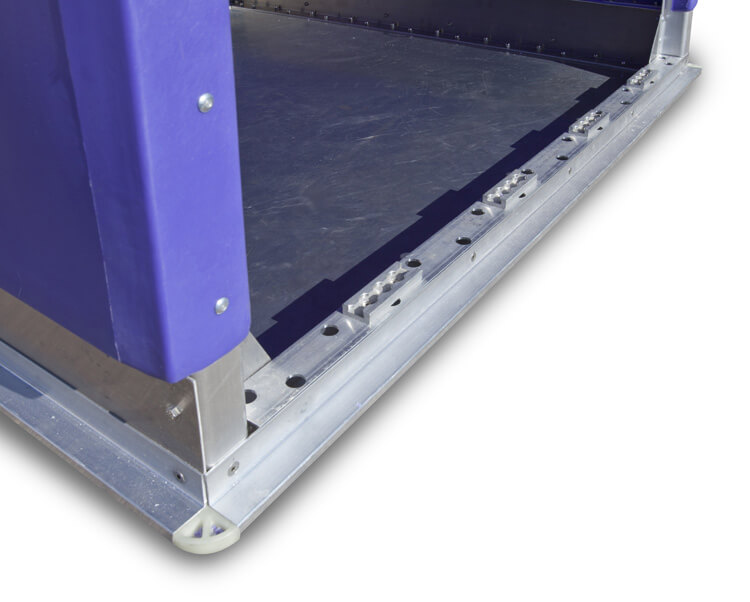

    4. LD 3 AKE Base, LD 3 Air Cargo Container, LD 3, AKE Container, AKE Air Cargo, Granger Aerospace LD 3 Base

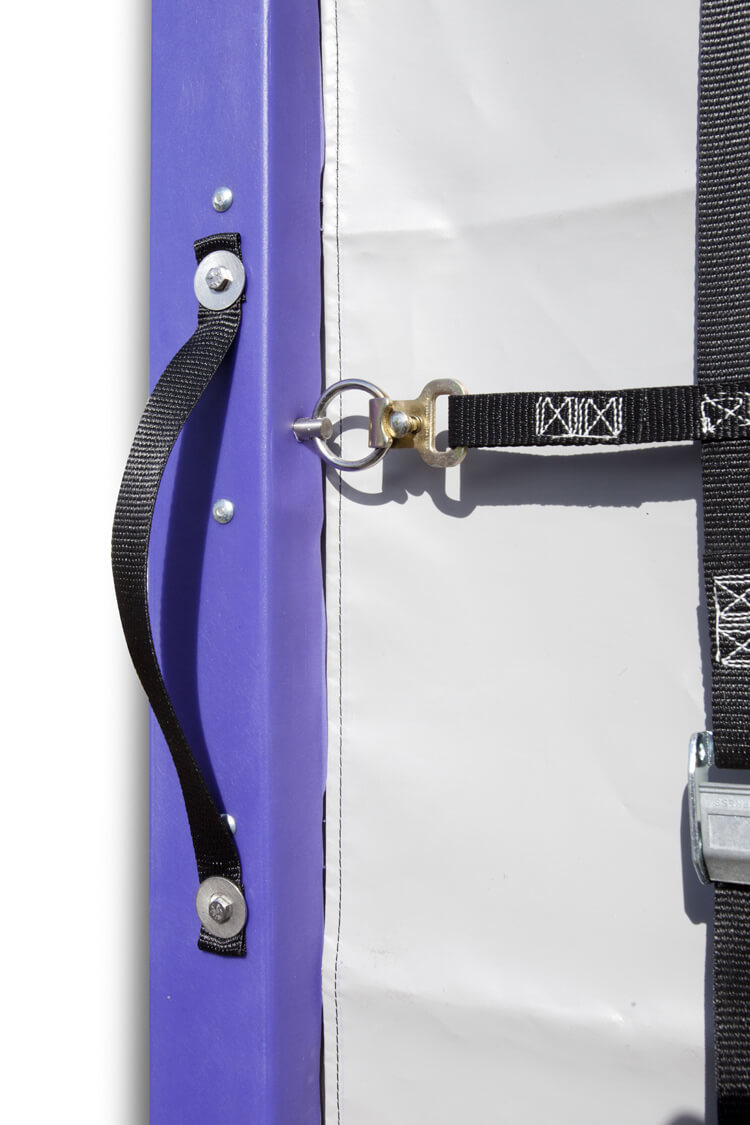

    5. LD 3 AKE Handle, LD 3 Air Cargo Container Handle, LD 3 Air Cargo Container, Granger Aerospace LD 3

    6. LD 3 Air Cargo Container, LD 3 ULD Container, Granger Aerospace LD 3 AKE

    LD 3 AKE Technical Specifications

    Technical Specifications
    IATA   C90d
    SAE AS 36100 class   LD-3/AKE
    Granger Aerospace P/N   NAS 3610 (2K2C)
    Base size 1534 x 2438 mm 61.5 in x 60.4 in
    Height 1625 mm 64.0 in
    Roof length 2438 mm 79.0 in
    Max. gross weight 2449 kg 3500 lb
    Internal volume 5.7 cu m 150 cu ft
    External volume 6.1 cu m 166 cu ft
    Door opening 2298 x 1532 mm 53.13 in x 57.75 in
    Tare weight from 84.8 kg 187 lb

    LD 3 AKE Air Cargo Container Ultimate Load Test

    Watch the video above and see the Granger Plastics Air Cargo Containers successfully complete the FAA's Ultimate Load Testing. Watch as the LD 3 Air Cargo Container completes the loaded test!

    LD 3 AKE Dimensional Drawings

    Click below to download LD 3 AKE Dimensional PDF
    LD 3 Dimensions, LD 3 Air Cargo Container Dimensions, AKE dimensions

    LD 3 AKE Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.
  • LD 3 Air Cargo Container Links


    LD 3 AKE/AKN Air Cargo Container Information

    Click below to download LD 3 AKE Technical PDF
    LD 3 Specifications, Dimensions, LD 3 Air Cargo Container Dimensions, AKE Dimensions, AKF dimensions

    LD 3 AKN Air Cargo Containers

    Click on any of the thumbnail images to the right to display the larger image in the LD 2 Air Cargo Container Image Gallery.
    LD 3 AKE Air Cargo Container

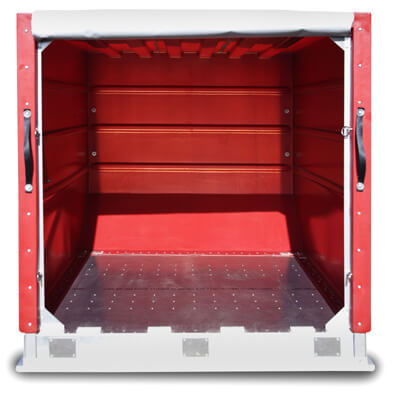

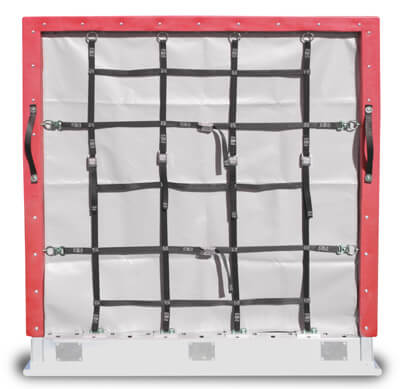

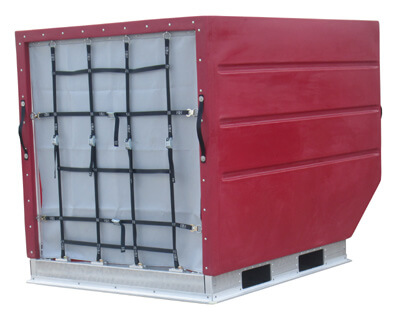

    Granger Aerospace LD 3 AKN Air Cargo Container
    1. LD 3, Granger LD 3, Granger Aerospace LD 3, LD 3 AKN, LD 3 Forkliftable
    2. LD 3 AKN, LD 3, AKN Container, Granger Aerospace ld 3, Granger Plastics LD 3
    3. Granger Aerospace LD 3, LD 3, Granger LD 3 AKN

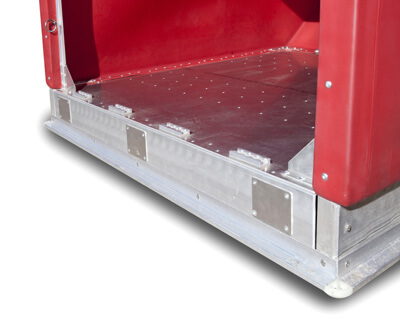

    4. LD 3 AKN Base, LD 3 Air Cargo Container, LD 3, AKN Container, AKN Air Cargo, Granger Aerospace LD 3 Base
    5. LD 3 AKN Handle, LD 3 Air Cargo Container Handle, LD 3 Air Cargo Container, Granger Aerospace LD 3

    LD 3 AKN Technical Specifications

    Technical Specifications
    IATA   C90d
    SAE AS 36100 class   LD-3/AKN
    Granger Aerospace P/N   NAS 3610 (2K2C)
    Base size 1534 x 2438 mm 79.0 in x 60.4 in
    Height 1625 mm 64.0 in
    Roof length 2438 mm 79.0 in
    Max. gross weight 2449 kg 3500 lb
    Internal volume 3.5 cu m 125 cu ft
    External volume 4.7 cu m 166 cu ft
    Door opening 2298 x 1532 mm 53.13 in x 57.75 in
    Tare weight from 118.8 kg 262 lbs.

    LD 3 AKN Ultimate Load Test Video!

    See the forkliftable LD 3 AKN air cargo container successfully complete the FAA's Ultimate Load Testing in the video above!

    LD 3 AKN Side Load Test- 8 Days

    In typical fashion of Granger's commitment to quality and excellence, Granger decided to allow it's newly unveiled, LD-3 Air Freight Container to hang in the side load position, while loaded with 5,283 pounds of sandbags. Watch in the video above, as the air cargo container hangs for 8 days. Coming soon, Granger Aerospace will video the repairs to this container, making it ready for the tarmac all over again!

    LD 3 AKN Dimensional Drawings

    Click below to download LD 3 AKN Dimensional PDF
    LD 3 Dimensions, LD 3 Air Cargo Container Dimensions, AKN dimensions

    LD 3 AKN ULD Container Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.
  • LD 3 Air Cargo Container Links


    LD 3 AKE/AKN ULD Container Information

    Click below to download LD 3 AKN Technical PDF
    LD 3 Specifications, Dimensions, LD 3 Air Cargo Container Dimensions, AKN Dimensions, AKN dimensions


    LD 8 DQN ULD Container

    Product gallery

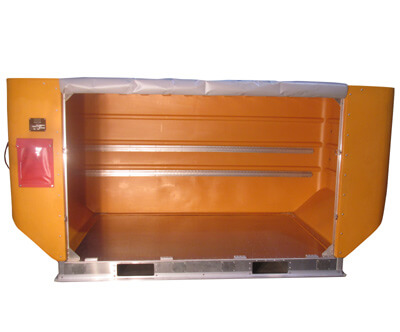

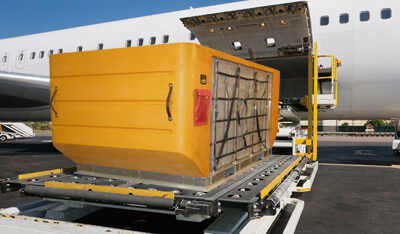

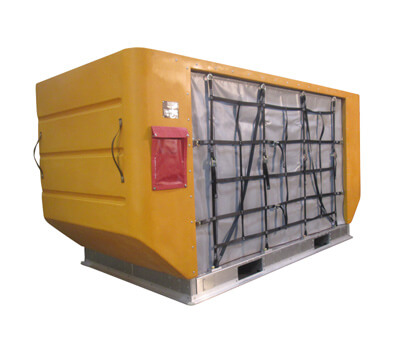

    Granger Aerospace LD 8 DQN Air Cargo Container
    1. LD 8, LD-8, Granger LD 8, Granger Aerospace LD 8, Granger Aerospace ULD8

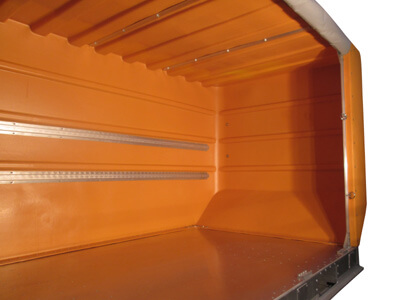

    2. Interior Of LD 8, Granger Aerospace LD 8

    3. Granger Aerospace LD 8, LD 8, Granger Aerospace Products, Air Cargo Container

    4. Air Cargo Containers, ULD 2, LD 2 Air Cargo, Granger Aerospace

    LD 8 DQN Technical Specifications

    Technical Specifications
    TSO   N/A
    IATA   LD-8/DQN
    SPEC.   AS 1677
    Granger Aerospace P/N   GA2-0108-3
    Base size 2438 mm x 1534 mm 96.0 in x 60.4 in
    Height 1625 mm 64 in
    Roof length 3175 mm 125 in
    Max. gross weight 2449 kg 5400 lb
    Internal volume 6.4 cu m 224.5 cu. ft
    External volume 7.5 cu m 265 cu ft
    Door opening 2254 mm x 1462 mm 88.75 in x 57.56 in
    Tare weight from 169.6 kg 374 lb

    LD 8 DQN Dimensional Drawings

    Click below to download LD 8 DQN Dimensional PDF
    LD 8 Dimensions, LD 8 Air Cargo Container Dimensions, DQN dimensions

    LD 8 DQN Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-8 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.
  • LD 8 Air Cargo Container Links


    LD 8 DQF/DQN Air Cargo Container Information

    Click below to download LD 8 DQN Technical PDF
    LD 8 Specifications, Dimensions, LD 8 Air Cargo Container Dimensions, DQF Dimensions, DQN dimensions

    LD 8 DQF Air Cargo Containers

    Click any thumbnail image to the right to display the larger image in the LD 8 Air Cargo Container Image Gallery.
    Product gallery

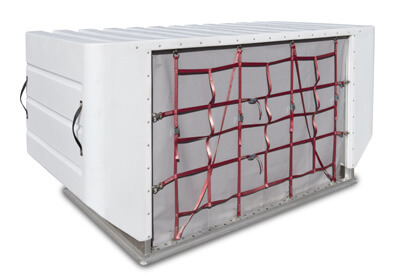

    Granger Aerospace LD 8 DQN Air Cargo Container
    1. LD 8, LD-8, Granger LD 8, Granger Aerospace LD 8, Granger Aerospace ULD8

    2. Interior Of LD 8, Granger Aerospace LD 8

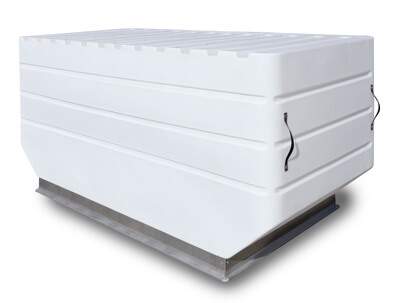

    3. Granger Aerospace LD 8, LD 8, Granger Aerospace Products, Air Cargo Container

    4. Air Cargo Containers, ULD 2, LD 2 Air Cargo, Granger Aerospace

    LD 8 DQF Technical Specifications

    Technical Specifications
    TSO   N/A
    IATA   LD-8/DQF
    SPEC.   AS 1677
    Granger Aerospace P/N   GA2-0108-2
    Base size 2438 mm x 1534 mm 96.0 in x 60.4 in
    Height 1625 mm 64 in
    Roof length 3175 mm 125 in
    Max. gross weight 2449 kg 5400 lb
    Internal volume 6.9 cu m 244 cu. ft
    External volume 7.5 cu m 265 cu ft
    Door opening 2254 mm x 1462 mm 88.75 in x 57.56 in
    Tare weight from 116.5 kg 257 lb

    LD 8 DQF Dimensional Drawings

    Click below to download LD 8 DQF Dimensional PDF
    LD 8 Dimensions, LD 8 Air Cargo Container Dimensions, DQF dimensions

    LD 8 DQF Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-8 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.
  • LD 8 Air Cargo Container Links


    LD 8 DQF/DQN Information ULD Container

    Click below to download LD 8 DQN Technical PDF
    LD 8 Specifications, Dimensions, LD 8 Air Cargo Container Dimensions, DQF Dimensions, DQN dimensions
