LD 2 Air Cargo Containers

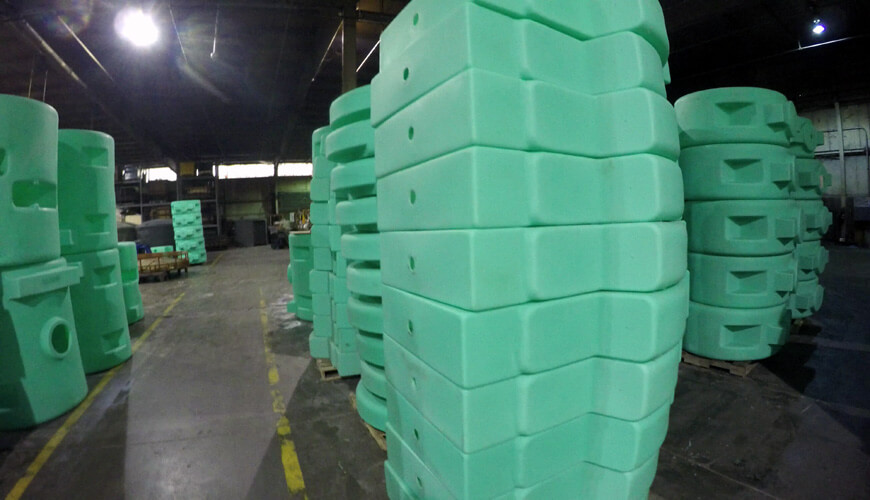

A timeless and traditional component of the Air Cargo industry is the LD 2 Containers, also known as DPE and DPN ULD's. The LD 2 Air Cargo Containers feature a single piece polymer shell, which offers a tremendous reduction of maintenance expense and down time, as the rotationally molded shells offer superior durability over antiquated technology, such as aluminum, polycarbonate and fiberglass. The single piece polymer shell is also available in a wide variety of colors, or even custom colors for easy identification and increased operations efficiency.

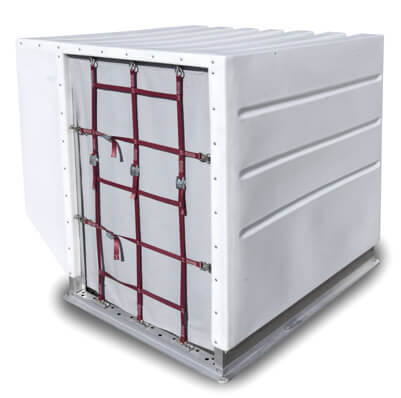

LD 2 DPE Air Cargo Container

Click on any of the thumbnail images to the right to display the larger image in the LD 2 Air Cargo Container Image Gallery.

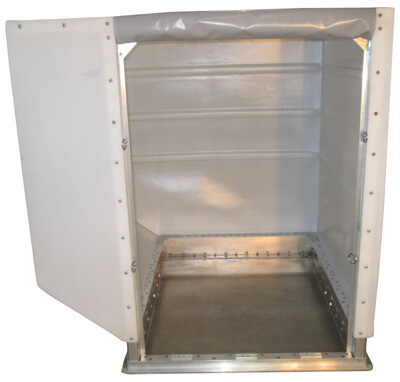

LD 2 DPE Air Cargo Container
Granger Aerospace LD 2 DPE Air Cargo Container
  1. LD 2, Granger LD 2, Granger Aerospace LD 2, LD 2 DPE, LD 2 Forkliftable

  2. LD 2 DPE, LD 2, DPE Container, Granger Aerospace ld 2, Granger Plastics LD 2

  3. Granger Aerospace LD 2, LD 2, Granger LD 2 DPE

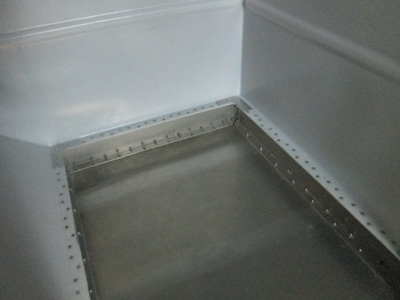

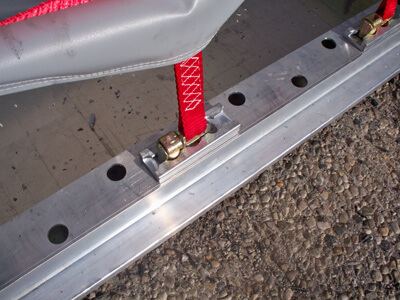

  4. LD 2 DPE Base, LD 2 DPE Air Cargo Container, LD 2, DPE Container, DPE Air Cargo, Granger Aerospace LD 2 DPE

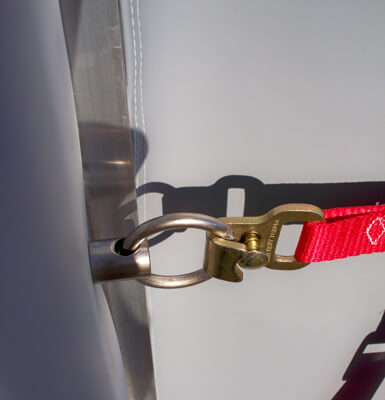

  5. LD 2 AKN Handle, LD 2 Air Cargo Container Handle, LD 2 Air Cargo Container, Granger Aerospace LD 2



LD 2 DPE Technical Specifications

Technical Specifications
TSO   N/A
IATA   LD-2/DPE
Spec.   AS 1677
Granger Aerospace P/N   GA2-0102-2
Base size 1534 mm x 1562 mm 60.4 in x 61.5 in
Height 1625 mm 64 in
Roof length 1562 mm 61.5 in
Max. gross weight 1224 kg 2700 lb
Internal volume 3.5 cu m 123 cu ft
External volume 3.65 cu m 129 cu ft
Door opening 1010 mm x 1480 mm 39.75 in. x 58.25 in
Tare weight from 72.1 kg 159 lb


LD 2 DPE Dimensional Drawings

Click below to download LD 2 DPE Dimensional PDF

LD 2 Dimensions, LD 2 Air Cargo Container Dimensions, DPE dimensions


LD 2 DPE Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-2 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.
  • LD 2 Air Cargo Container Links



    LD 2 DPE / DPN Air Cargo Container Information

    Click below to download LD 2 DPE Technical PDF
    LD 2 Specifications, Dimensions, LD 2 Air Cargo Container Dimensions, DPE Dimensions, DPN dimensions

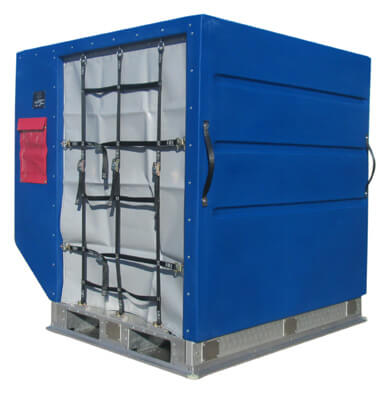

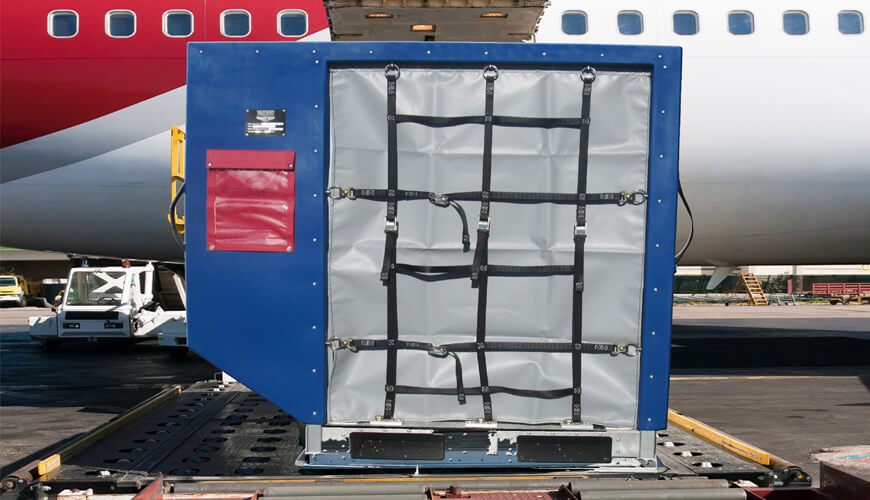

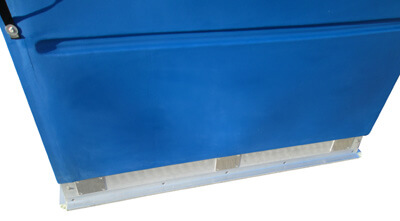

    LD 2 DPN Air Cargo Container

    Click on any of the thumbnail images to the right to display the larger image in the LD 2 Air Cargo Container Image Gallery.

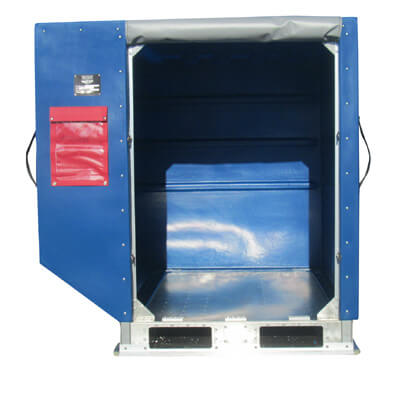

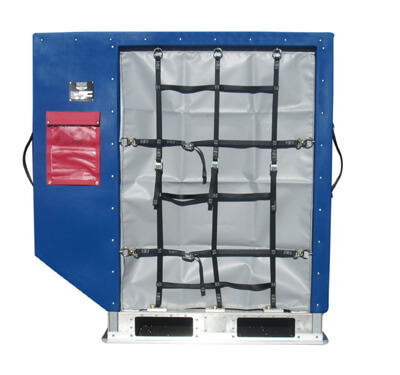

    LD 2 DPN Air Cargo Container
    Granger Aerospace LD 2 DPN Air Cargo Container
    1. LD 2, Granger LD 2, Granger Aerospace LD 2, LD 2 DPN, LD 2 Forkliftable

    2. LD 2 DPN, LD 2, DPN Container, Granger Aerospace ld 2, Granger Plastics LD 2

    3. Granger Aerospace LD 2, LD 2, Granger LD 2 AKN

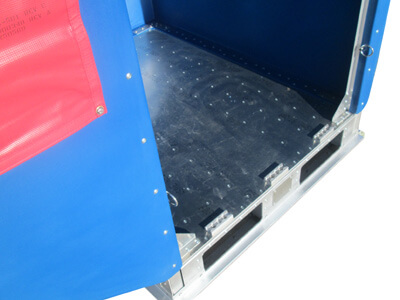

    4. LD 2 DPN Base, LD 2 Air Cargo Container, LD 2, DPN Container, DPN Air Cargo, Granger Aerospace LD 2 Base

    5. LD 2 DPN Handle, LD 2 Air Cargo Container Handle, LD 2 Air Cargo Container, Granger Aerospace LD 2

    LD 2 DPN Technical Specifications

    Technical Specifications
    IATA   C90d
    SAE AS 36100 class   LD-2/DPN
    Granger Aerospace P/N   NAS 3610 (2K2C)
    Base size 1534 x 2438 mm 79.0 in x 60.4 in
    Height 1625 mm 64.0 in
    Roof length 2438 mm 79.0 in
    Max. gross weight 2449 kg 3500 lb
    Internal volume 3.5 cu m 125 cu ft
    External volume 4.7 cu m 166 cu ft
    Door opening 2298 x 1532 mm 53.13 in x 57.75 in
    Tare weight from 118.8 kg 262 lbs.

    LD 2 DPN Dimensional Drawings

    Click below to download LD 2 DPN Dimensional PDF
    LD 2 Dimensions, LD 2 Air Cargo Container Dimensions, DPN dimensions

    LD 2 DPN Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-2 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.
  • LD 2 Air Cargo Container Links


    LD 2 DPE / DPN Air Cargo Container Information

    Click below to download LD 2 DPN Technical PDF
